IPS vs VA: Which Display Technology is Right for You?

Choosing the right display technology can make a significant difference in your viewing experience. LCD panels dominate today’s monitor market, with IPS (In-Plane Switching) and VA (Vertical Alignment) emerging as two leading technologies that serve different user needs.

These display technologies shape how you see colors, contrast, and motion on your screen. Each panel type brings distinct advantages:

1. IPS panels excel in color accuracy and viewing angles
2. VA panels deliver superior contrast ratios and deeper blacks

Your choice between IPS and VA can impact everything from your gaming performance to your content creation workflow. A photographer might need the precise color reproduction of an IPS panel, while a movie enthusiast could prefer the rich blacks of a VA display.

This guide breaks down the key differences between IPS and VA technologies. You’ll discover:

• How each panel type works
• The strengths and limitations of both technologies
• Real-world performance comparisons
• Specific use cases for each panel type
• Advanced variations and features
• Practical buying considerations

With this knowledge, you can choose the display technology that fits your needs. This applies whether you are a creative professional, gamer, or everyday user looking for the best viewing experience.

Learn how to choose and buy a 4K TV.

Understanding Display Panel Technologies

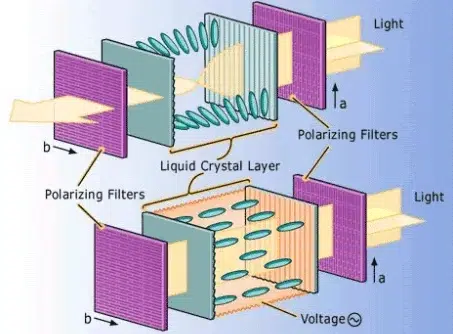

LCD (Liquid Crystal Display) technology forms the foundation of modern displays, including both IPS and VA panels. At its core, an LCD panel consists of several layers:

• A backlight source
• Two polarizing filters
• Liquid crystal molecules
• Color filters
• Transistors for pixel control

The liquid crystals act as light valves, controlling how much light passes through each pixel. When voltage is applied, these crystals change their position. This affects how light passes through and creates the images on the screen.

IPS Panel Technology

IPS panels arrange their liquid crystals parallel to the panel surface. This unique configuration creates several distinct characteristics:

• Crystal Movement: Crystals rotate horizontally when voltage is applied
• Light Control: Precise manipulation of light through consistent crystal patterns
• Pixel Structure: Uniform alignment across the entire display surface

This molecular arrangement allows IPS displays to maintain consistent colors across the entire screen. The horizontal crystal rotation enables light to pass through evenly, resulting in accurate color reproduction from multiple viewing positions.

VA Panel Technology

VA panels utilize a different approach, with liquid crystals arranged perpendicular to the display surface:

• Crystal Alignment: Vertical positioning in their natural state
• Light Blocking: Superior light-blocking capabilities when crystals are aligned
• Voltage Response: Crystals tilt to allow light passage

The vertical crystal arrangement in VA panels creates an effective light barrier when in their default position. This structural design enables:

• Deep black levels
• High native contrast ratios
• Rich color saturation in dark scenes

Each crystal configuration directly impacts panel performance. VA panels excel at blocking backlight when displaying black content, while IPS panels prioritize consistent light distribution for color accuracy.

The specific alignment methods used in both technologies create distinct advantages and limitations, shaping their ideal use cases and performance characteristics in different viewing scenarios.

Key Differences Between IPS and VA Panels

IPS and VA panels showcase distinct characteristics in three critical areas: color performance, viewing angles, and contrast capabilities.

1. Color Accuracy and Consistency

IPS panels deliver superior color accuracy with the ability to display up to 98% of the Adobe RGB color space. Professional photographers working on a calibrated IPS display can trust that the reds in a sunset photo or the subtle skin tones in a portrait appear true to life. VA panels typically achieve 90-95% coverage, resulting in slightly less vibrant colors in real-world scenarios.

Color consistency across the screen varies between these technologies:

• IPS maintains uniform colors from edge to edge
• VA displays can show minor color shifts near screen borders
• Professional design work benefits from IPS color stability
• VA panels excel in entertainment scenarios where perfect color accuracy is less critical

2. Viewing Angle Performance

IPS technology stands out with its impressive viewing angle capabilities:

• Maintains color accuracy up to 178 degrees horizontally and vertically
• Minimal brightness drop-off when viewed from sides
• Perfect for collaborative work environments
• Ideal for multi-monitor setups

VA panels show limitations in viewing angle performance:

• Color shifting becomes noticeable beyond 60 degrees
• Contrast degradation at wider angles
• Dark scenes appear washed out from side views
• Best viewed directly head-on

3. Contrast Ratio and Black Levels

VA panels dominate in contrast performance:

• Static contrast ratios reaching 3000:1 to 4000:1
• Deep, inky blacks in dark scenes
• Excellent shadow detail reproduction
• Superior performance in dimly lit environments

IPS displays typically offer:

• Static contrast ratios around 1000:1
• Lighter black levels appearing more gray
• Some IPS glow in dark scenes
• Better bright-scene performance

Real-world testing shows VA panels delivering impressive results in dark movie scenes, making starfields pop in space films and shadow details clear in horror movies. IPS displays compensate with better bright-scene performance and consistent color reproduction across the entire screen, crucial for tasks like photo editing or web design.

Also read:   What is a “soap opera” in movies?

Response Times, Motion Handling, and Common Issues in IPS vs VA Displays

Response time plays a crucial role in display performance, particularly for gaming and fast-moving content. IPS panels typically offer faster response times, averaging 4-5ms gray-to-gray (GTG), while VA panels often range between 8-10ms GTG.

Gaming Performance Breakdown:

IPS Displays

• Quick pixel transitions
• Minimal motion blur
• Reduced ghosting in fast-paced games
• Better visibility during rapid camera movements

VA Displays

• Slower pixel transitions
• More noticeable smearing in dark scenes
• Higher chance of ghosting artifacts
• Black smearing during high-contrast transitions

Common Visual Artifacts

The IPS glow phenomenon appears as a visible brightening in the corners of the screen, particularly noticeable when viewing dark content in low-light conditions. This effect becomes more pronounced when viewing the screen from angles.

VA panels suffer from their own distinct issues:

• Dark objects leave trailing shadows
• Most visible during gaming
• Particularly noticeable in high-contrast scenarios
• Can affect text readability when scrolling

Recent Technological Improvements

Modern gaming monitors have implemented various technologies to address these limitations:

1. High refresh rates (144Hz+)
2. Adaptive sync technologies
3. Overdrive settings
4. Black Frame Insertion (BFI)

Premium VA panels now achieve response times closer to IPS displays, though they maintain their characteristic black smearing to some degree. High-end IPS panels have also improved their performance, with some models reaching 1ms GTG response times.

The visibility of these artifacts varies significantly based on individual sensitivity to motion blur and personal viewing preferences. Competitive gamers often prefer IPS panels for their superior motion clarity, while casual gamers might find VA panels acceptable, especially considering their superior contrast ratios.

Also, read: Why do you need the TV code? You can find it in the manual and on the Internet.

Use Case Scenarios: Choosing Between IPS and VA Based on Your Needs

IPS Panel: Professional Creative Work

• Color-critical tasks demand IPS displays for their superior color accuracy and consistency
• Graphic designers rely on IPS panels to ensure designs appear identical across different viewing positions
• Photo editors benefit from the precise color reproduction when adjusting tones and hues
• Web designers need accurate color representation to maintain brand consistency
• Video editors can trust the colors they see during color grading and correction

IPS Panel Performance Metrics

• Color accuracy: Delta E < 2 (industry standard for professional work)
• Viewing angles: 178° horizontal and vertical
• sRGB coverage: 99-100%
• Adobe RGB coverage: Up to 98% on premium models

VA Panel: Entertainment and General Use

• Movie enthusiasts appreciate VA’s superior contrast in dark scenes
• HDR content looks more dramatic with deeper blacks
• Horror games benefit from enhanced shadow detail
• Home theater setups gain immersive viewing experiences
• Office work with text documents appears crisp and clear

VA Panel Performance Metrics

• Contrast ratio: 2500:1 to 4000:1
• Black levels: 0.05 nits or lower
• HDR performance: Enhanced due to better contrast
• Text clarity: Sharp due to high contrast

Specific Use Cases

Choose IPS for:

1. Professional photography work
2. Digital art creation
3. UI/UX design
4. Print media design
5. Multi-monitor setups

Choose VA for:

1. Home theater systems
2. Dark room gaming
3. General office work
4. Budget-conscious setups
5. Single-monitor entertainment

Your workspace environment plays a crucial role in panel selection. Bright rooms benefit from IPS panels’ anti-glare properties, while dark rooms maximize VA panels’ contrast advantages. Consider your primary tasks and viewing conditions when making your choice.

Advanced Considerations: Variations Within Panel Types

High-end display manufacturers have developed specialized variants of both IPS and VA panels, pushing the boundaries of traditional performance limitations.

Advanced IPS Variants:

• Nano IPS: LG’s proprietary technology incorporating nano-particles to enhance color accuracy and gamut coverage up to 98% DCI-P3
• Fast IPS: Achieves response times as low as 1ms, rivaling TN panels for gaming performance
• AH-IPS: Advanced High-Performance IPS offering improved brightness and power efficiency

Enhanced VA Technologies:

• Samsung’s SVA (Super Vertical Alignment): Delivers response times under 4ms while maintaining high contrast ratios
• AU Optronics’ AMVA+: Features improved viewing angles and reduced color shift compared to standard VA panels
• High-Refresh VA: Modern gaming monitors with VA panels now support refresh rates up to 240Hz

Premium Features in Both Types:

• Quantum Dot technology integration for enhanced color reproduction
• Local dimming capabilities for improved contrast performance
• HDR certification options ranging from VESA DisplayHDR 400 to 1000

These advanced variants often command higher price points but bridge traditional performance gaps between IPS and VA technologies. Gaming-focused VA panels now offer competitive response times, while premium IPS displays achieve deeper blacks through sophisticated backlight solutions.

The latest generation of hybrid technologies continues to evolve, with manufacturers developing custom solutions that combine benefits from multiple panel types. These innovations create new possibilities for users seeking specific performance characteristics without traditional compromises.

Making a Decision: Which Panel Technology Is Right for You?

Selecting between IPS and VA panels comes down to your specific needs and priorities. Here’s a practical decision-making framework based on common use cases:

Choose IPS if you:

• Work with photo or video editing
• Need precise color accuracy for design work
• Share your screen with others frequently
• Play fast-paced competitive games
• Value consistent image quality at different viewing positions

Choose VA if you:

• Watch movies and streaming content regularly
• Play atmospheric single-player games
• Work in a dark environment
• Prioritize deep blacks and high contrast
• Use your display primarily head-on

Budget Considerations

• Entry-level IPS panels start at higher price points
• VA panels offer better value for contrast performance
• High-end variants of both technologies have similar pricing
• Premium features like HDR affect cost more than panel type

Your working environment plays a crucial role in this decision. Bright rooms benefit from IPS panels’ anti-glare properties and consistent colors. Dark rooms showcase VA panels’ superior contrast and black levels.

Consider your desk setup too – if you often view your screen from different angles while multitasking, IPS maintains better image quality. For fixed viewing positions, VA’s contrast advantages outweigh its viewing angle limitations.

Also, read:  There is no perfect black color in LED and QLED.

Conclusion

The IPS vs VA debate highlights a crucial truth about display technology: there’s no universal “best” choice. Each panel type excels in specific scenarios, making your intended use the key deciding factor.

When to Choose IPS Panels

IPS panels shine in:

1. Professional creative work
2. Color-critical applications
3. Multi-user viewing environments
4. Fast-paced gaming

When to Choose VA Panels

VA panels dominate in:

1. Movie watching
2. Dark room environments
3. Single-user setups
4. Budget-conscious scenarios

Your perfect panel choice depends on your unique needs. If you’re a graphic designer or content creator, an IPS panel’s color accuracy and wide viewing angles will serve you well. For movie enthusiasts or users who prioritize deep blacks and high contrast, a VA panel delivers an immersive viewing experience.

Remember: technological advancements continue to blur the lines between these panel types. Modern VA panels offer improved response times, while IPS panels push the boundaries of contrast ratios. Your decision should reflect your current needs while considering future requirements.

Take time to experience both panel types in person when possible. The best monitor panel choice is the one that matches your specific use case, budget, and visual preferences.

FAQs (Frequently Asked Questions)
